1.6T
OSFP / OPTICAL TRANSCEIVER

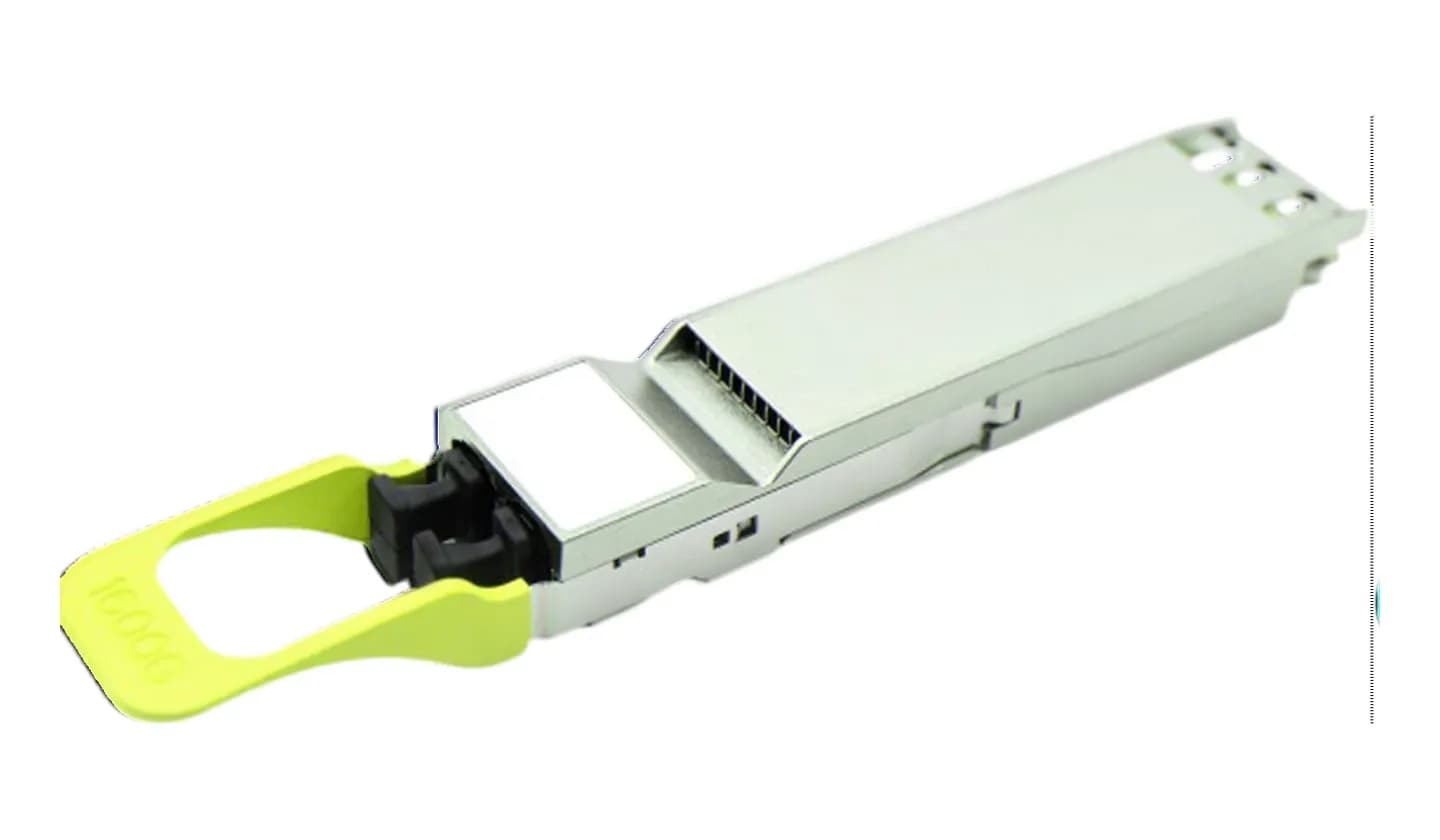

1.6T OSFP DR8
A 1.6 Tb/s OSFP DR8 optical transceiver supporting up to 500 m reach over single-mode fiber (SMF), featuring dual MTP/MPO-12 APC connectors for Tx/Rx interfaces.
DATA RATE1.6T
MAX. REACH500 m
MAX. POWER≤24 W
Contact our team for availability, compatibility and technical selection.
PRODUCT DETAILS
Technical specifications
| Data rate | 1.6T |
|---|---|
| Form factor | OSFP |
| Maximum link distance | 500 m |
| Wavelength | 1310 nm |
| Connector | Dual MTP/MPO-12 APC |
| Fiber type | Single-Mode Fiber (SMF) |
| Maximum power | ≤24 W |
| Transmitter | Silicon Photonics (SiPh) |
| Receiver | PIN |
| Electrical lanes | 8 × 200G PAM4 |
| Optical lanes | Dual 4 × 200G PAM4 |
| Case temperature | 0 to 70 °C (32 to 158 °F) |
| Standards | OSFP MSA, CMIS Rev 5.2, IEEE 802.3bs |
