400G
OSFP-RHS / OPTICAL TRANSCEIVER

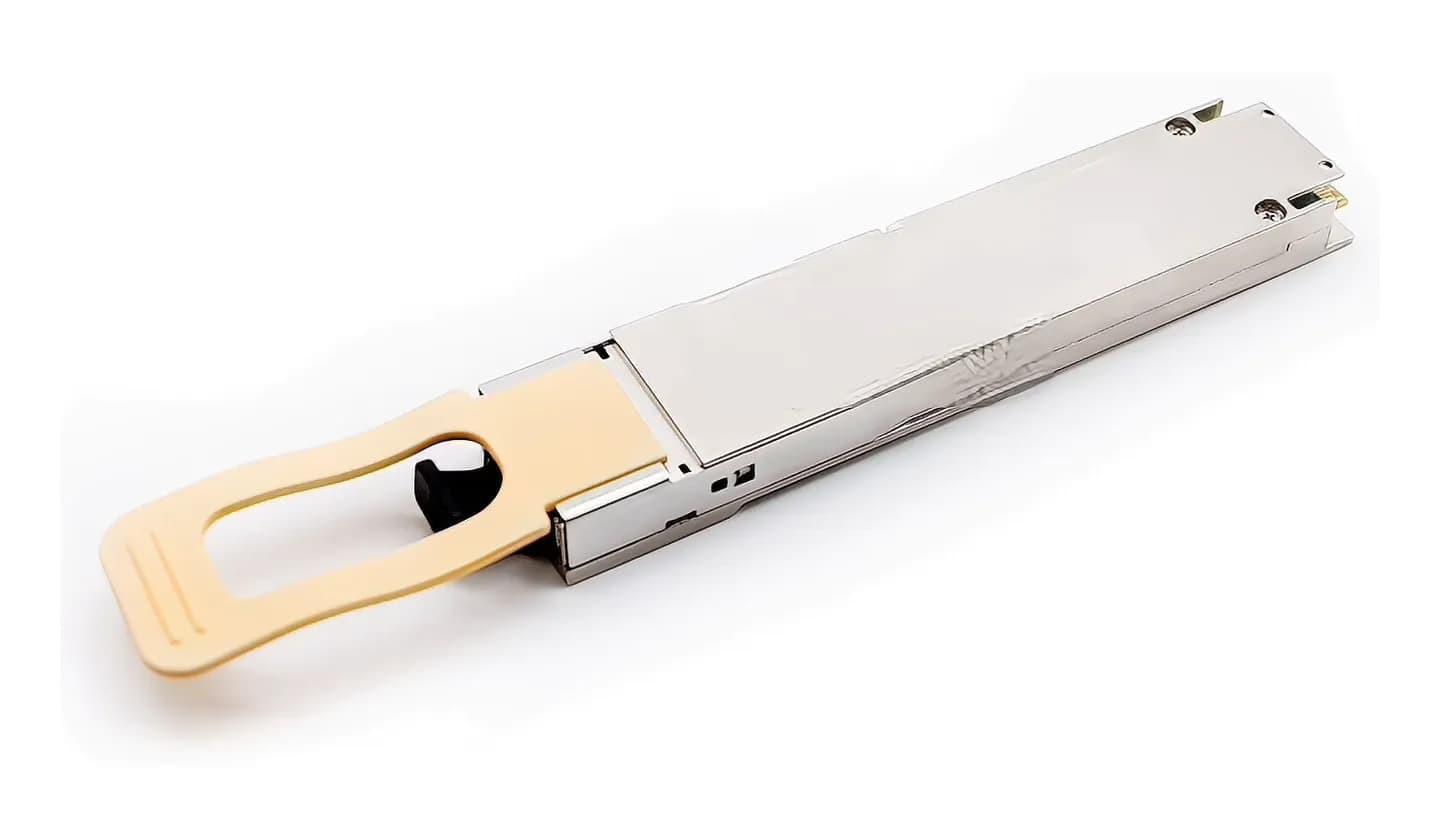

400G OSFP-RHS VR4
A 400 Gb/s OSFP-RHS VR4 optical transceiver supporting up to 30 m over OM3 or 50 m over OM4 multimode fiber (MMF), featuring an MPO-12 APC connector.
DATA RATE400G
MAX. REACH30 m (OM3) / 50 m (OM4)
MAX. POWER≤9 W
Contact our team for availability, compatibility and technical selection.
PRODUCT DETAILS
Technical specifications
| Data rate | 400G |
|---|---|
| Form factor | OSFP-RHS |
| Maximum link distance | 30 m (OM3) / 50 m (OM4) |
| Wavelength | 850 nm |
| Connector | MPO-12 APC |
| Fiber type | Multi-Mode Fiber (MMF) |
| Maximum power | ≤9 W |
| Transmitter | VCSEL |
| Receiver | PIN |
| Electrical lanes | 4 × 100G PAM4 |
| Optical lanes | 4 × 100G PAM4 |
| Case temperature | 0 to 70 °C (32 to 158 °F) |
| Standards | OSFP MSA, CMIS Rev 5.2, IEEE 802.3db |
