400G
QSFP112 / OPTICAL TRANSCEIVER

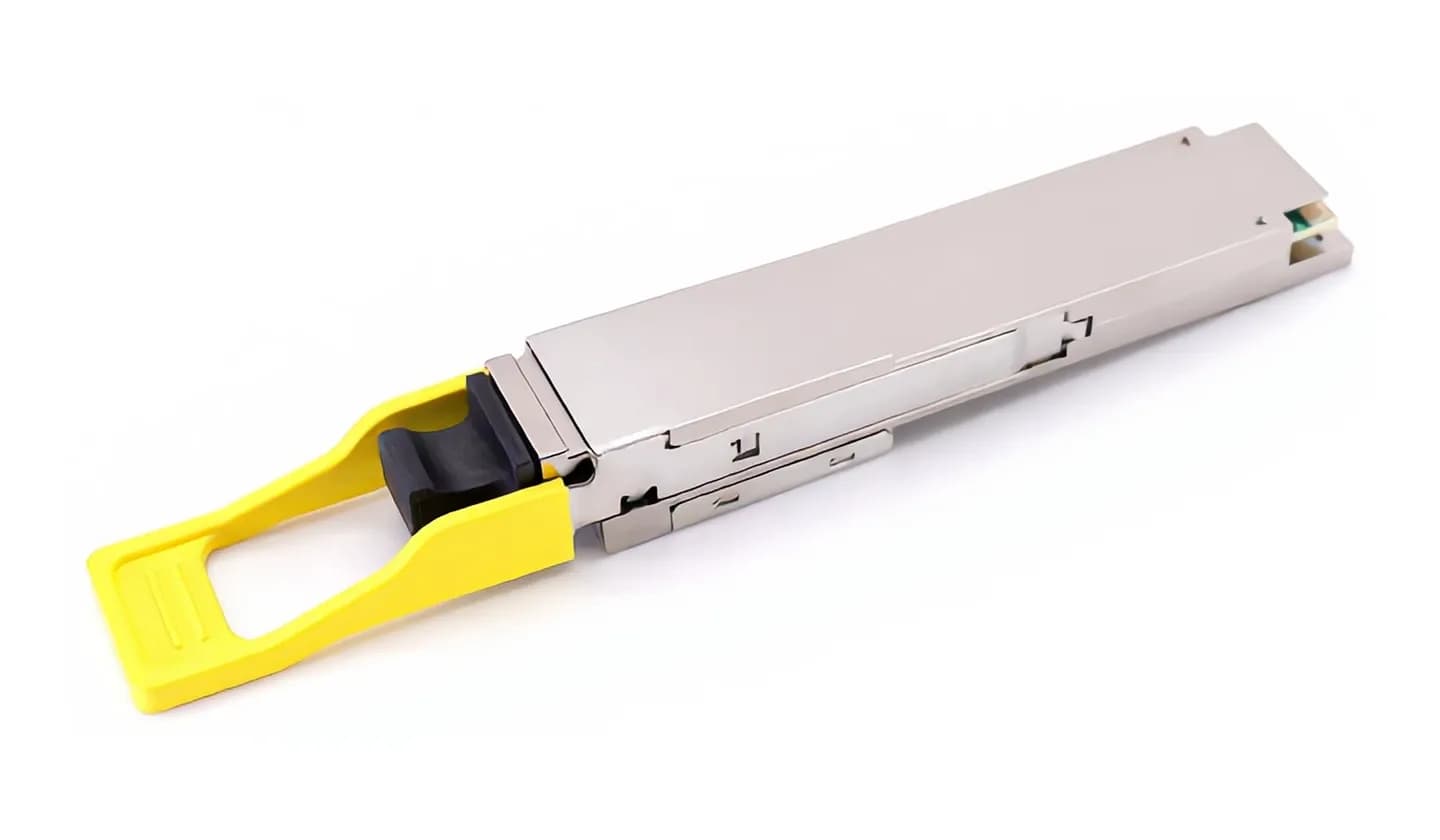

400G QSFP112 DR4
A 400 Gb/s QSFP112 DR4 optical transceiver supporting up to 500 m reach over single-mode fiber (SMF), featuring an MPO-12 APC connector.
DATA RATE400G
MAX. REACH500 m
MAX. POWER≤9 W
Contact our team for availability, compatibility and technical selection.
PRODUCT DETAILS
Technical specifications
| Data rate | 400G |
|---|---|
| Form factor | QSFP112 |
| Maximum link distance | 500 m |
| Wavelength | 1310 nm |
| Connector | MPO-12 APC |
| Fiber type | Single-Mode Fiber (SMF) |
| Maximum power | ≤9 W |
| Transmitter | Silicon Photonics (SiPh) |
| Receiver | PIN |
| Electrical lanes | 4 × 100G PAM4 |
| Optical lanes | 4 × 100G PAM4 |
| Case temperature | 0 to 70 °C (32 to 158 °F) |
| Standards | QSFP112 MSA, CMIS Rev5.2, IEEE802.3 bs |
