400G
QSFP-DD / OPTICAL TRANSCEIVER

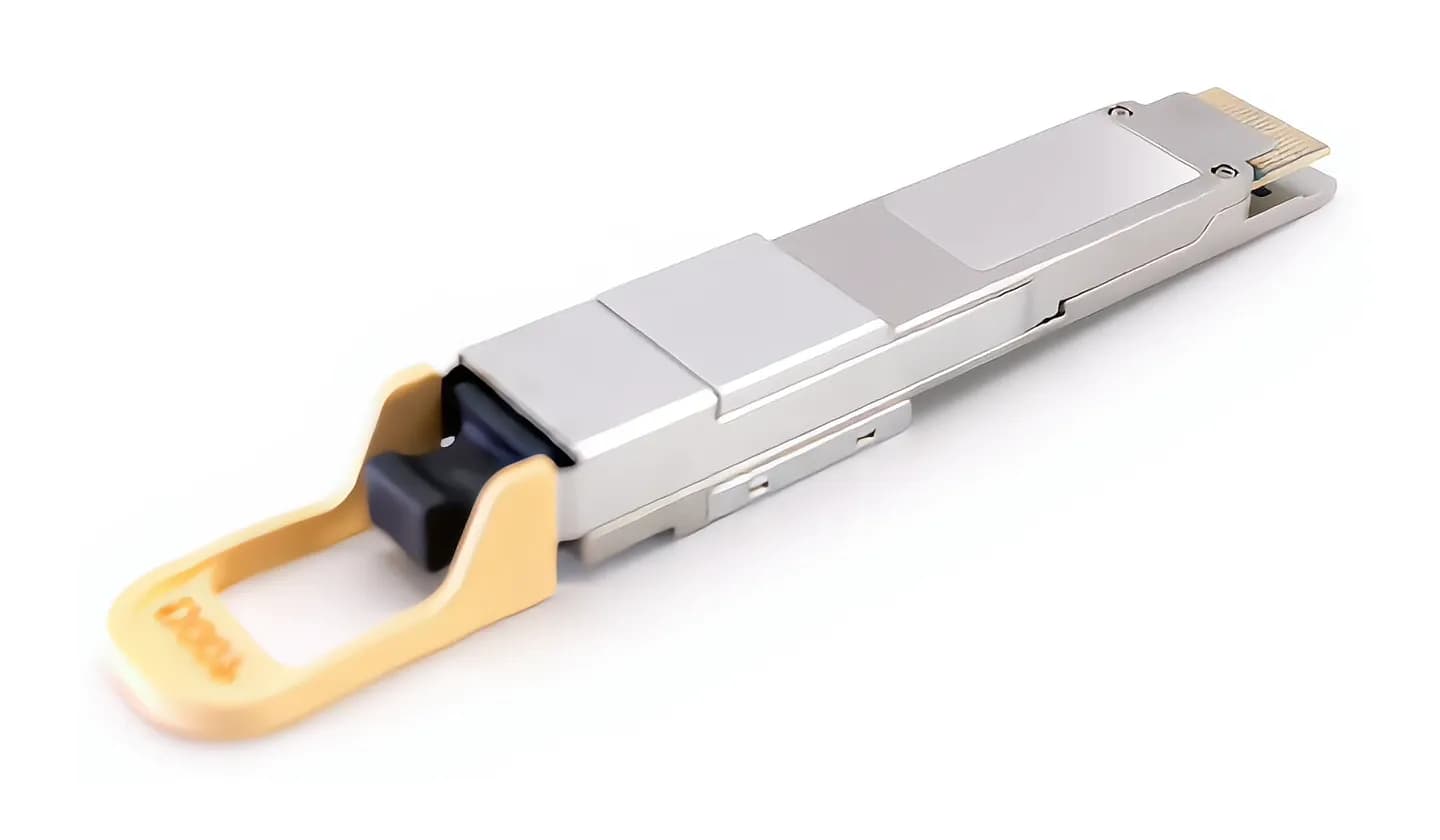

400G QSFP-DD SR8
A 400 Gb/s QSFP-DD SR8 optical transceiver supporting up to 70 m reach over OM3 or 100 m reach over OM4 multimode fiber (MMF), featuring an MPO-16 APC connector.
DATA RATE400G
MAX. REACH70 m (OM3) / 100 m (OM4)
MAX. POWER≤9 W
Contact our team for availability, compatibility and technical selection.
PRODUCT DETAILS
Technical specifications
| Data rate | 400G |
|---|---|
| Form factor | QSFP-DD |
| Maximum link distance | 70 m (OM3) / 100 m (OM4) |
| Wavelength | 850 nm |
| Connector | MPO-16 APC |
| Fiber type | Multi-Mode Fiber (MMF) |
| Maximum power | ≤9 W |
| Transmitter | VCSEL |
| Receiver | PIN |
| Electrical lanes | 8 × 50G PAM4 |
| Optical lanes | 8 × 50G PAM4 |
| Case temperature | 0 to 70 °C (32 to 158 °F) |
| Standards | QSFP-DD MSA, CMIS Rev 5.2, IEEE 802.3db |
