800G
OSFP / OPTICAL TRANSCEIVER

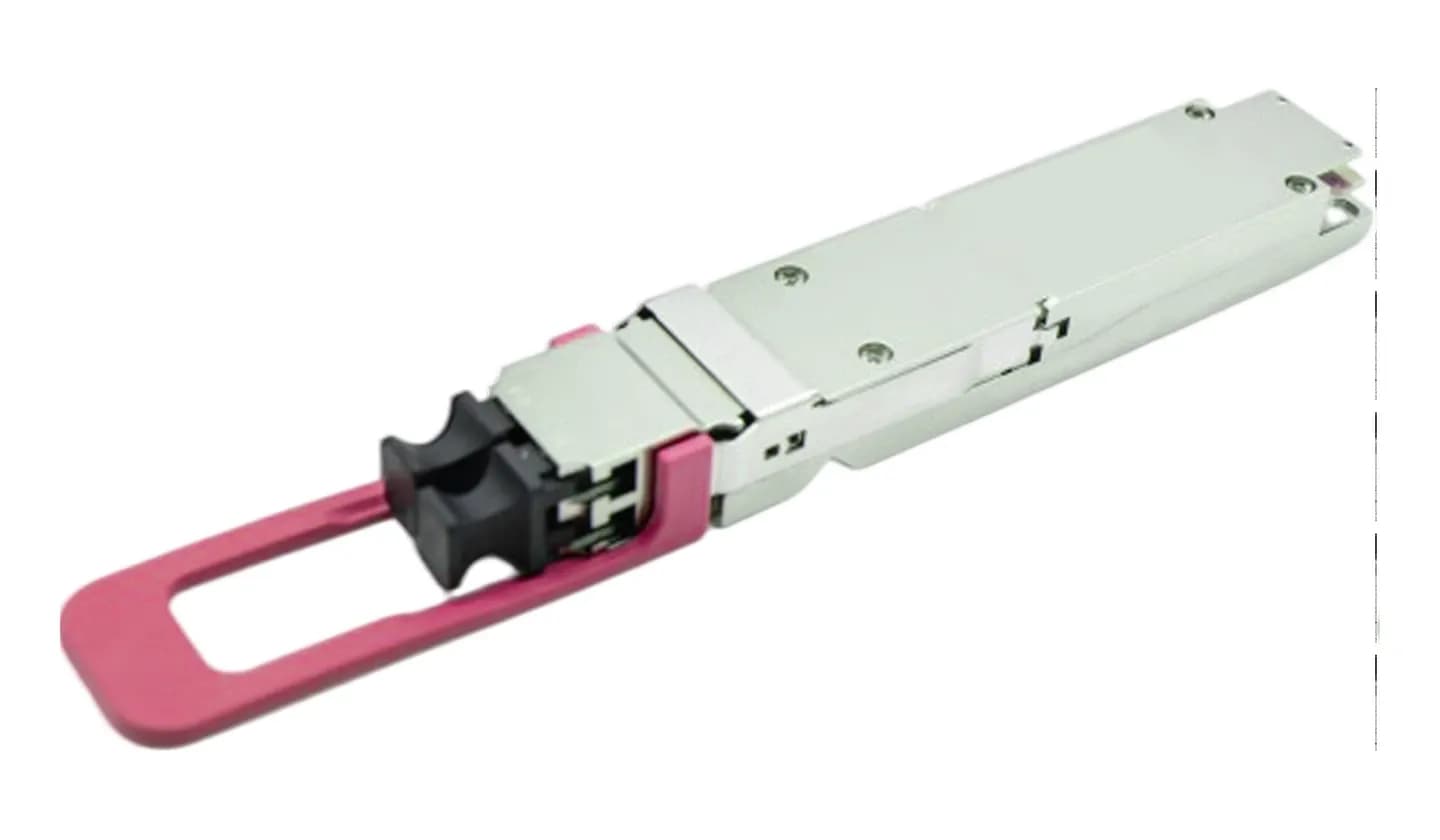

800G OSFP 2xFR4
An 800 Gb/s OSFP 2xFR4 optical transceiver supporting up to 2 km reach over single-mode fiber (SMF), featuring dual duplex LC connectors.
DATA RATE800G
MAX. REACH2 km
MAX. POWER≤16 W
Contact our team for availability, compatibility and technical selection.
PRODUCT DETAILS
Technical specifications
| Data rate | 800G |
|---|---|
| Form factor | OSFP |
| Maximum link distance | 2 km |
| Wavelength | 1310 nm |
| Connector | Dual Duplex LC |
| Fiber type | Single-Mode Fiber (SMF) |
| Maximum power | ≤16 W |
| Transmitter | Silicon Photonics (SiPh) |
| Receiver | PIN |
| Electrical lanes | 8 × 100G PAM4 |
| Optical lanes | 8 × 100G PAM4 |
| Case temperature | 0 to 70 °C (32 to 158 °F) |
| Standards | OSFP MSA, CMIS Rev 5.2, IEEE 802.3bs |
