800G
QSFP-DD / OPTICAL TRANSCEIVER

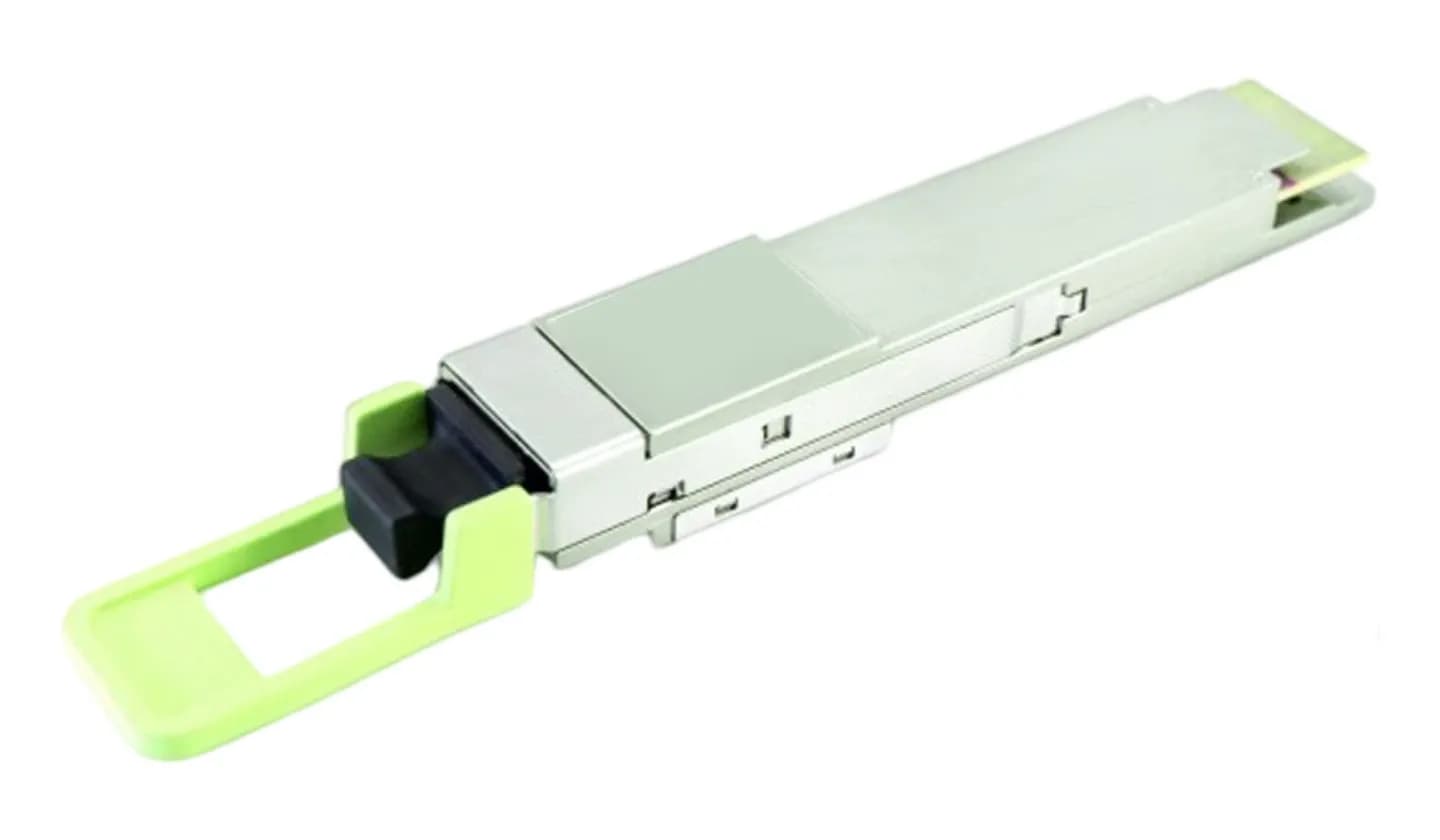

800G QSFP-DD VR8
An 800 Gb/s QSFP-DD VR8 optical transceiver supporting up to 30 m over OM3 or 50 m over OM4 multimode fiber (MMF), featuring an MPO-16 APC connector.
DATA RATE800G
MAX. REACH30 m (OM3) / 50 m (OM4)
MAX. POWER≤15 W
Contact our team for availability, compatibility and technical selection.
PRODUCT DETAILS
Technical specifications
| Data rate | 800G |
|---|---|
| Form factor | QSFP-DD |
| Maximum link distance | 30 m (OM3) / 50 m (OM4) |
| Wavelength | 850 nm |
| Connector | MPO-16 APC |
| Fiber type | Multi-Mode Fiber (MMF) |
| Maximum power | ≤15 W |
| Transmitter | VCSEL |
| Receiver | PIN |
| Electrical lanes | 8 × 100G PAM4 |
| Optical lanes | 8 × 100G PAM4 |
| Case temperature | 0 to 70 °C (32 to 158 °F) |
| Standards | QSFP-DD MSA, CMIS Rev 5.2, IEEE 802.3db |
